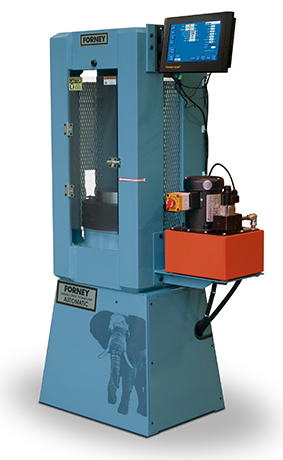

Forney 650 Series Compression Machine with Automatic (VFD) Controls and Standard Frame (F)

Designed and built by Forney. These machines are ideal for the general lab because of their versatility. Standard Testing Machines have frames manufactured from solid steel into a one-piece, welded unit that exceeds ACI recommendations. All machines in the series have Lexan fragment guard doors for enhanced safety.

GET A QUOTE

Download the Spec Sheet

Download arrow

Load Capacity

650,000lb

Frame

Standard (F)

Control System

VFD

Test Types

Compression, Flexural, Modulus of Elasticity/Poisson's Ratio (MP), Proppant Crush Resistance, Tensile Splitting

Testing Materials

Cylinders, Cubes, Grout Prism, Beams, Masonry Blocks, Proppant Sand, Rock Core

Additional Product Information

Accessories

  • Cylinder Compression (6" Dia x 12" L with Pad Caps) (150mm x 300mm)

    TA-0101-03 High Strength Cylinder Top Platen Assembly (included w/ machine)

  • Cylinder Compression (6" Dia x 12" L with Capping Compound or Ground Ends) (150mm x 300mm)

    TA-0101-03 High Strength Cylinder Top Platen Assembly (included w/ machine)

    TA-0151 Bottom Platen

  • Cylinder Compression (4" Dia x 8" L with Pad Caps) (100mm x 200mm)

    TA-0101 Cylinder Top Platen Assembly (included w/ machine)

    TA-0202 Spherical Seat Extender, 4" H

  • Cylinder Compression (4" Dia x 8" L with Capping Compound or Ground Ends) (100mm x 200mm)

    TA-0103 Cylinder Top Platen Assembly

    TA-0202 Spherical Seat Extender, 4" H

  • Cylinder Tensile Splitting (6" Dia x 12" L) (150mm x 300mm)

    TAG-0023 Cylinder Splitting Kit

  • Cylinder Tensile Splitting (4" Dia x 8" L) (100mm x 200mm)

    TA-0107-01 Cylinder Splitting Accessory

    TM-0074 Bottom Platen

    TA-0171 Spacer, 2" H

  • Cube (2") (50mm)

    TAG-0056 Cube (2") Accessory Kit

  • Cube (6") (150mm)

    TA-0111 Cube Top Platen Assembly

    (2) TA-0202 Spherical Seat Extender, 4" H

  • Flexural Beam (6" x 6" x 18") (150mm x 150mm x 450mm)

    TA-0166 Flexural Testing Accessory

  • Grout Prism (3" x 3" x 6") (75mm x 75mm x 150mm)

    TA-0103 Cylinder Top Platen Assembly

    TA-0202-02 Spherical Seat Extender, 6" H

  • MOE (6" diameter) (150mm)

    LA-0488-E6-SG Compressometer

    *Must have compression accessories

    *Must have -M or -MP machine

  • MOE (4" diameter) (100mm)

    LA-0488-E4-SG Compressometer

    *Must have compression accessories

    *Must have -M or -MP machine

  • MOE & Poisson's Ratio (6" Diameter) (150mm)

    LA-0488-P6-SG Compressometer/Extensometer

    *Must have compression accessories

    *Must have -MP machine

  • MOE & Poisson's Ratio (4" Diameter) (100mm)

    LA-0488-P4-SG Compressometer/Extensometer

    *Must have compression accessories

    *Must have -MP machine

  • MOE & Poisson's Ratio (2" Diameter) (50mm)

    TA-3542-03 Axial Extensometer 2"

    TA-3975-01 Diametral 0.030"

    *Must have compression accessories

    *Must have -MP machine

Factory Installed Options

  • Voltage

    110/220VAC Single Phase

  • Displacement

    Available Upgrade

  • Optional Test Protocol Capabilities

    ASTM C469 MOE (M)

    ASTM C469 MOE & Poisson's Ratio (MP)

    ISO 13503-2 Proppant (SW-0010)

    *Additional accessories required

    *Inquire about other test type requirements

  • Capacity Options

    Dual Range (2 transducers) on Single Frame (2R)

  • Frame Options

    Second Frame Capability (AB)

    Dual Frame Capability (adds 250k de-rated frame to machine) (2F)

    Dual Frame Capability (adds 30k frame setup for Concrete Beam) (BT)

  • Travel Limit Switch

    Standard Equipment

Specifications

  • Load Capacity Range

    6,500lbf - 650,000lbf

  • Vertical Opening

    19.125"

  • Horizontal Opening

    11"

  • Ram Diameter

    10.5"

  • Piston Stroke

    2.5"

  • Platen Hardness

    60 HRC

  • Lower Platen Dimension

    10.5" Diameter

  • Upper Platen Dimension

    7" Diameter

  • Oil Reservoir Capacity

    2 Gallons

  • Overall Width

    35"

  • Overall Depth

    24"

  • Overall Height

    62"

  • Unit Weight

    1,850lbs

  • Test Standard Ready

    ASTM C39 Cylinders in Compression (6" diameter x 12" length, pad cap tesing)

    ASTM E4

  • Test Standard Capable

    ASTM C39, C78, C293, C109, C469, C496, C1019, C1609, D7012

    AASHTO T 22, T 97, T 106

    ISO 13503-2

    BS 1610, BS 1881, EN ISO7500-1, EN 12390-3, EN 12390-4
