Forney 801 Series Block Tester Compression Machine with Automatic (VFD) Controls and High Stiffness Frame (FHS)

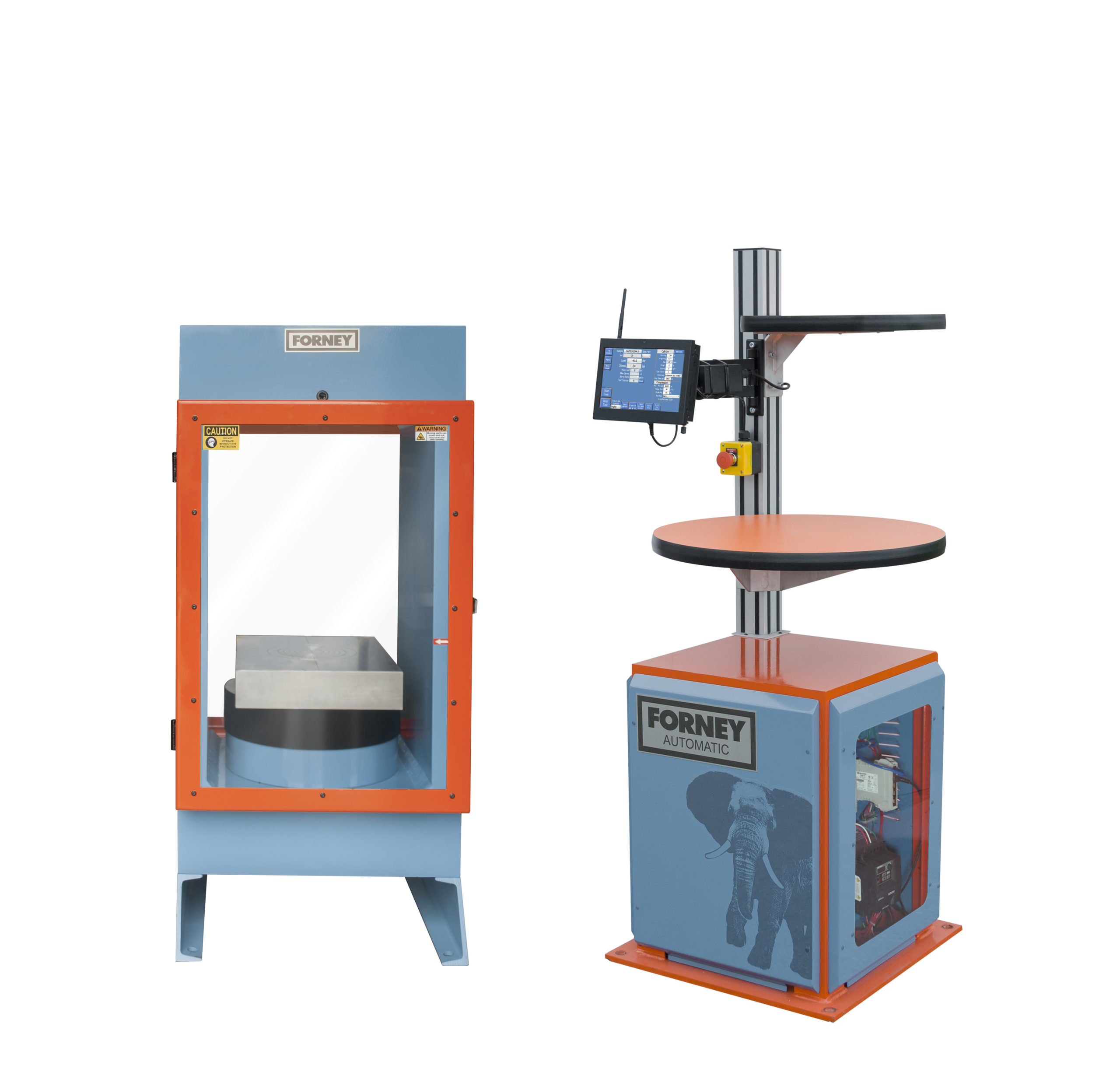

Designed and built by Forney. The 801 is a Single Block Compression Testing Machine for testing high strength concrete block, cylinders, beams, cubes, masonry products, and rock specimens. As part of Forney’s Premium “FHS” Series, the machine features a high stiffness frame and fully enclosed test chamber that is especially suited for high testing volumes and high strength concrete testing.  FHS Testing Machines frames are manufactured from solid steel into a one-piece, welded unit that exceeds ACI recommendations.

GET A QUOTE

Download the Spec Sheet

Download arrow

Load Capacity

800,000lb

Frame

High Stiffness (FHS)

Control System

VFD

Test Types

Compression, Flexural, Tensile Splitting

Testing Materials

Cylinders, Cubes, Grout Prism, Beams, Masonry Blocks, Rock Core

Additional Product Information

Accessories

  • Cylinder Compression (6" Dia x 12" L with Pad Caps) (150mm x 300mm)

    TA-0102-C High Strength Cylinder Top Platen Assembly

    TM-3300-16 Draw Rod

  • Cylinder Compression (6" Dia x 12" L with Capping Compound or Ground Ends) (150mm x 300mm)

    TA-0102-C High Strength Cylinder Top Platen Assembly

    TA-0178-02 Draw Rod Spacer, 2" H

    TM-3300-16 Draw Rod

  • Cylinder Compression (4" Dia x 8" L with Pad Caps) (100mm x 200mm)

    TA-0101 Cylinder Top Platen Assembly

    TA-0204-02 Draw Rod Spacer, 4" H

    TA-0204-03 Draw Rod Spacer, 3" H

    TM-3300-16 Draw Rod

  • Cylinder Compression (4" Dia x 8" L with Capping Compound or Ground Ends) (100mm x 200mm)

    TA-0101 Cylinder Top Platen Assembly

    TA-0204-01 Draw Rod Spacer, 8" H

    TM-3300-16 Draw Rod

  • Cylinder Tensile Splitting (6" Dia x 12" L) (150mm x 300mm)

    TA-0107-06 Cylinder Splitting Accessory

    TA-0204-03 Draw Rod Spacer, 3" H

    TM-3300-16 Draw Rod

  • Cylinder Tensile Splitting (4" Dia x 8" L) (100mm x 200mm)

    TA-0107-06 Cylinder Splitting Accessory

    TA-0204-03 Draw Rod Spacer, 3" H

    TA-0178-02 Draw Rod Spacer, 2" H

    TM-3300-16 Draw Rod

  • Cube (2") (50mm)

    TAG-0002 Cube (2") Accessory Kit

    TM-3300-16 Draw Rod

    TA-0204-03 Draw Rod Spacer, 3" H

  • Cube (6") (150mm)

    TA-0109 Cube Top Platen Assembly

    TA-0204-01 Draw Rod Spacer, 8" H

    TA-0178-02 Draw Rod Spacer, 2" H

    TM-3300-16 Draw Rod

  • Flexural Beam (6" x 6" x 18") (150mm x 150mm x 450mm)

    TA-0204-03 Draw Rod Spacer, 3" H

    TM-3300-16 Draw Rod

    TA-0166 Flexural Testing Accessory

  • Masonry Block (8" or 12" W x 8" H x 16" L) (200mm or 300mm W x 200mm H x 400mm L)

    TA-0113-09 Top Block Platen Accessory

    TA-0204-02 Draw Rod Spacer, 4"

    TA-0178-02 Draw Rod Spacer, 2"H

    TM-3300-16 Draw Rod

    TA-0158-25 Carrier Bracket

  • Grout Prism (3" x 3" x 6") (75mm x 75mm x 150mm)

    TA-0101 Cylinder Top Platen Assembly

    TA-0204-01 Draw Rod Spacer, 8" H

    TA-0178-02 Draw Rod Spacer, 2" H

    TM-3300-16 Draw Rod

  • MOE (6" diameter) (150mm)

    LA-0488-E6-SG Compressometer

    *Must have compression accessories

    *Must have -M or -MP machine

  • MOE (4" diameter) (100mm)

    LA-0488-E4-SG Compressometer

    *Must have compression accessories

    *Must have -M or -MP machine

  • MOE & Poisson's Ratio (6" Diameter) (150mm)

    LA-0488-P6-SG Compressometer/Extensometer

    *Must have compression accessories

    *Must have -MP machine

  • MOE & Poisson's Ratio (4" Diameter) (100mm)

    LA-0488-P4-SG Compressometer/Extensometer

    *Must have compression accessories

    *Must have -MP machine

  • MOE & Poisson's Ratio (2" Diameter) (50mm)

    TA-3542-03 Axial Extensometer 2"

    TA-3975-01 Diametral 0.030"

    *Must have compression accessories

    *Must have -MP machine

Factory Installed Options

  • Voltage

    110/220VAC Single Phase

  • Displacement

    Available Upgrade

  • Optional Test Protocol Capabilities

    ASTM C469 MOE (M)

    ASTM C469 MOE & Poisson's Ratio (MP)

    ISO 13503-2 Proppant (SW-0010)

    *Additional accessories required

    *Inquire about other test types

  • Capacity Options

    Dual Range (2 transducers) on Single Frame (2R)

  • Frame Options

    Second Frame Capability (AB)

    Dual Frame Capability (adds 250k de-rated frame to machine) (2F)

    Dual Frame Capability (adds 30k frame setup for Concrete Beam) (BT)

  • Travel Limit Switch

    Standard Equipment

Specifications

  • Load Capacity Range

    8,000lbf - 800,000lbf

  • Vertical Opening

    21.5"

  • Horizontal Opening

    19"

  • Ram Diameter

    12"

  • Piston Stroke

    3"

  • Platen Hardness

    60 HRC

  • Lower Platen Dimension

    14" x 19"

  • Upper Platen Dimension

    *See Available Accessories

  • Oil Reservoir Capacity

    5 Gallons

  • Overall Width

    24"

  • Overall Depth

    29"

  • Overall Height

    55"

  • Unit Weight

    3,500lbs

  • Test Standard Ready

    ASTM E4

  • Test Standard Capable

    ASTM C39, C78, C140, C293, C109, C469, C496, C1019, D7012

    AASHTO T 22, T 97, T 106

    BS 1610, BS 1881, EN ISO7500-1, EN 12390-3, EN 12390-4, EN 772-1
